As a trusted supplier of GM Starter Bendix, I've had the privilege of delving deep into the technical intricacies of these components. One of the most frequently asked questions in the automotive industry is about the electrical current draw of a GM Starter Bendix. In this blog, I'll share my insights and expertise on this topic, providing a comprehensive understanding of the factors that influence the current draw and its implications for the performance of the starter system.
Understanding the GM Starter Bendix
Before we dive into the electrical current draw, let's first understand what a GM Starter Bendix is. The Starter Bendix Drive is a crucial part of the starter motor assembly. It is responsible for engaging the starter motor's pinion gear with the flywheel of the engine when the ignition key is turned. Once the engine starts, the Bendix drive disengages the pinion gear to prevent the starter motor from over - speeding.

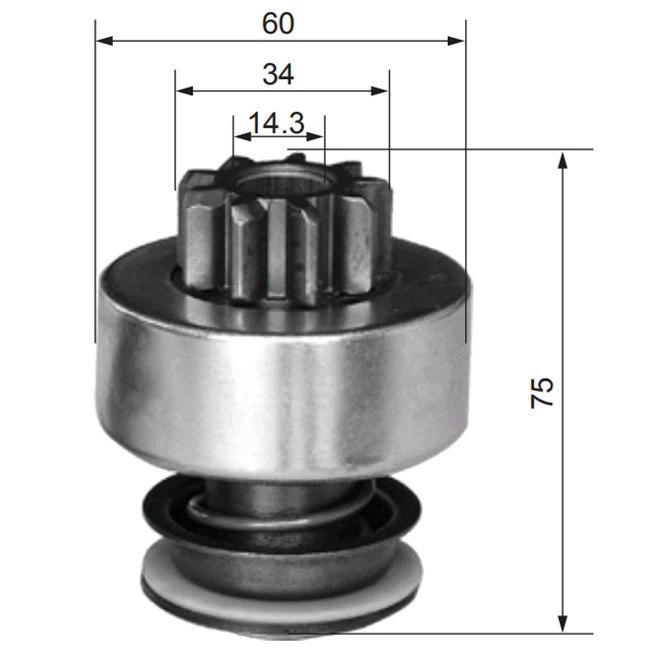

The Starter Motor Drive is a more comprehensive term that includes the Bendix drive and other components that work together to start the engine. The Drive ASM is an assembly that may consist of the Bendix drive, the pinion gear, and other related parts.
Factors Affecting the Electrical Current Draw
The electrical current draw of a GM Starter Bendix is not a fixed value. It is influenced by several factors, including:
Engine Compression
The compression ratio of the engine plays a significant role in determining the current draw. Engines with higher compression ratios require more torque to turn over, which in turn demands more electrical current from the starter motor. For example, a high - performance V8 engine with a high compression ratio will draw more current compared to a small four - cylinder engine with a lower compression ratio.
Temperature
Temperature has a profound effect on the current draw. In cold weather, the engine oil becomes thicker, increasing the resistance to the rotation of the engine components. This requires the starter motor to work harder, resulting in a higher current draw. Conversely, in warm weather, the oil is thinner, and the engine is easier to turn over, leading to a lower current draw.
Starter Motor Condition
The condition of the starter motor itself is also a crucial factor. A worn - out starter motor with damaged brushes, a faulty armature, or a weak solenoid may draw more current than a new or well - maintained one. This is because the inefficiencies in the motor cause it to work harder to generate the necessary torque.
Battery Voltage
The voltage provided by the battery is directly related to the current draw. A fully charged battery with a higher voltage can supply more power to the starter motor, allowing it to operate more efficiently and draw less current. On the other hand, a low - voltage battery may cause the starter motor to draw excessive current as it struggles to get enough power to turn the engine.
Measuring the Electrical Current Draw
To measure the electrical current draw of a GM Starter Bendix, a specialized tool called an ammeter is used. The ammeter is connected in series with the starter motor circuit. When the ignition key is turned, the ammeter measures the amount of current flowing through the circuit.
It's important to note that the current draw should be measured under specific conditions. For accurate results, the battery should be fully charged, and the engine should be at normal operating temperature. Additionally, any accessories that may draw power, such as lights or the radio, should be turned off.
Typical Current Draw Values
The typical current draw of a GM Starter Bendix can vary depending on the engine size and type. For a small four - cylinder engine, the current draw may range from 100 to 200 amperes. A six - cylinder engine may draw between 200 and 300 amperes, while a large V8 engine can draw 300 amperes or more.
However, these are just general guidelines. The actual current draw can deviate from these values based on the factors mentioned earlier. For example, a cold - starting V8 engine may draw significantly more current than the typical value.
Implications of High or Low Current Draw
High Current Draw
A high current draw can indicate several problems. It may be a sign of a worn - out starter motor, a problem with the engine (such as a seized piston), or a low - voltage battery. Continued operation with a high current draw can lead to overheating of the starter motor, which can cause permanent damage. It can also put a strain on the battery and the electrical system of the vehicle.
Low Current Draw
A low current draw may suggest that the starter motor is not receiving enough power. This could be due to a faulty battery, a loose or corroded connection in the starter motor circuit, or a problem with the solenoid. A low current draw may result in the engine failing to start or starting slowly.
Ensuring Optimal Performance
As a supplier of GM Starter Bendix, I understand the importance of ensuring optimal performance. To achieve this, regular maintenance of the starter motor and the electrical system is essential. This includes checking the battery voltage, inspecting the connections for corrosion or looseness, and testing the starter motor for proper operation.
Using high - quality replacement parts is also crucial. Our GM Starter Bendix products are designed to meet or exceed the original equipment manufacturer (OEM) specifications. They are made from high - quality materials and undergo rigorous testing to ensure reliable performance.
Contact Us for Your Starter Bendix Needs
If you're in the market for a GM Starter Bendix or have any questions about the electrical current draw or other aspects of starter motor performance, I encourage you to reach out to us. We have a team of experts who can provide you with detailed information and guidance. Whether you're a mechanic, a vehicle owner, or a distributor, we can offer the right solutions for your needs.
